QIL

> Learning to Quantize Deep Networks by Optimizing Quantization Intervals with Task Loss

Quantization Functions:

\[\begin{split}\hat w = \begin{cases} 0, & \text{if } |w| < c_W - d_W \\ \text{sign}(w), & \text{if } |w| > c_W + d_W \\ (\alpha_W |w| + \beta_W)^{\gamma} \cdot \text{sign}(w), & \text{otherwise} \end{cases}\end{split}\]

where \(\alpha_W = 0.5/d_W\) and \(\beta_W = -0.5c_W/d_W + 0.5\)

\[\begin{split}\hat a = \begin{cases} 0, & \text{if } a < c_A - d_A \\ 1, & \text{if } a > c_A + d_A \\ \alpha_A a + \beta_A, & \text{otherwise} \end{cases}\end{split}\]

where \(\alpha_A = 0.5/d_A\) and \(\beta_A = -0.5c_A/d_A + 0.5\)

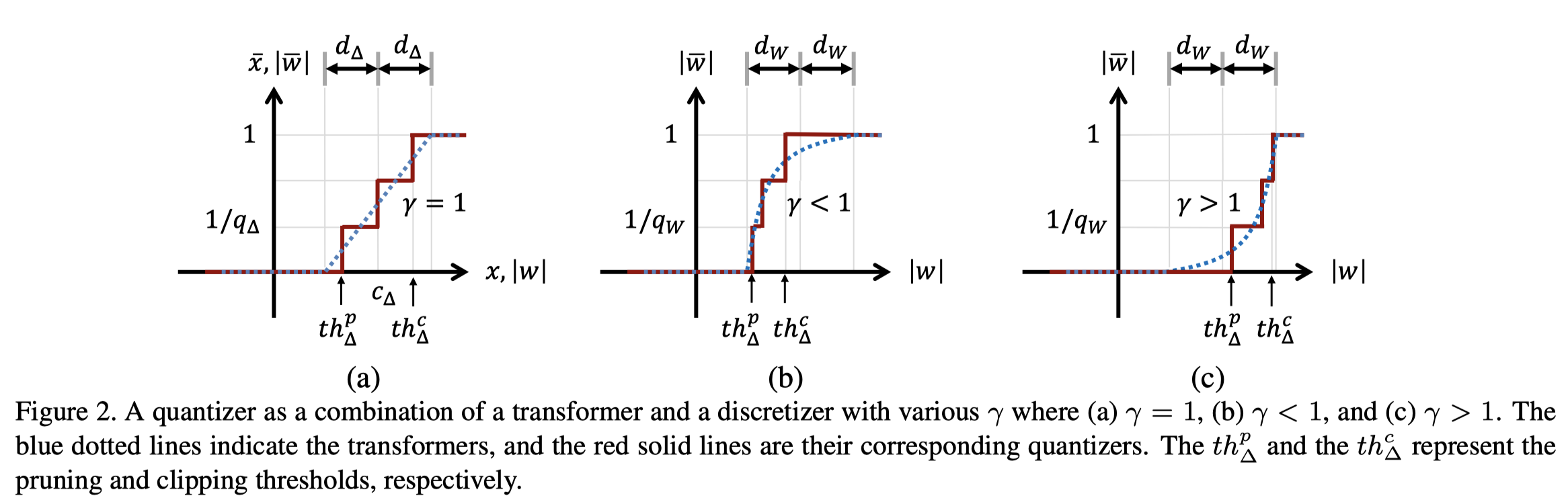

../_images/qil_quan.png

量化器的训练：

  1. 网络中的参数 \(\hat w\),按照BP算法进行梯度计算
  2. \(\frac{\partial \hat w}{\partial \gamma}\)
  3. \(\frac{\partial \hat w}{\partial c_W}\)
  4. \(\frac{\partial \hat w}{\partial d_W}\)

优点：

  1. 虽然量化的过程复杂，但是在推理时，量化后的权重是固定的，仍可以表示为integer的方式
  2. 有一个偏移的过程，可以起到剪枝的效果

缺点：

  1. 真正参与到网络运算的权重，\(w\in [-1,1]\)，并不能很好推广到除分类任务以外的任务
  2. 激活值也是如此，\(a\in [0, 1]\)

Experiments

../_images/qil_results.png

2/2给出的是Progressive finetuning的方法，LQ-Net是training from scratch，两者的相比性不大。

Direct: direct finetuning from full-precision weights. Progressive finetuning: (i.e, FP → 5/5 → 4/4 → 3/3 → 2/2 for 2/2-bit network)

Joint Training: The weights and quantization parameters are training jointly. Quantizer only: Only optimize quantizers.

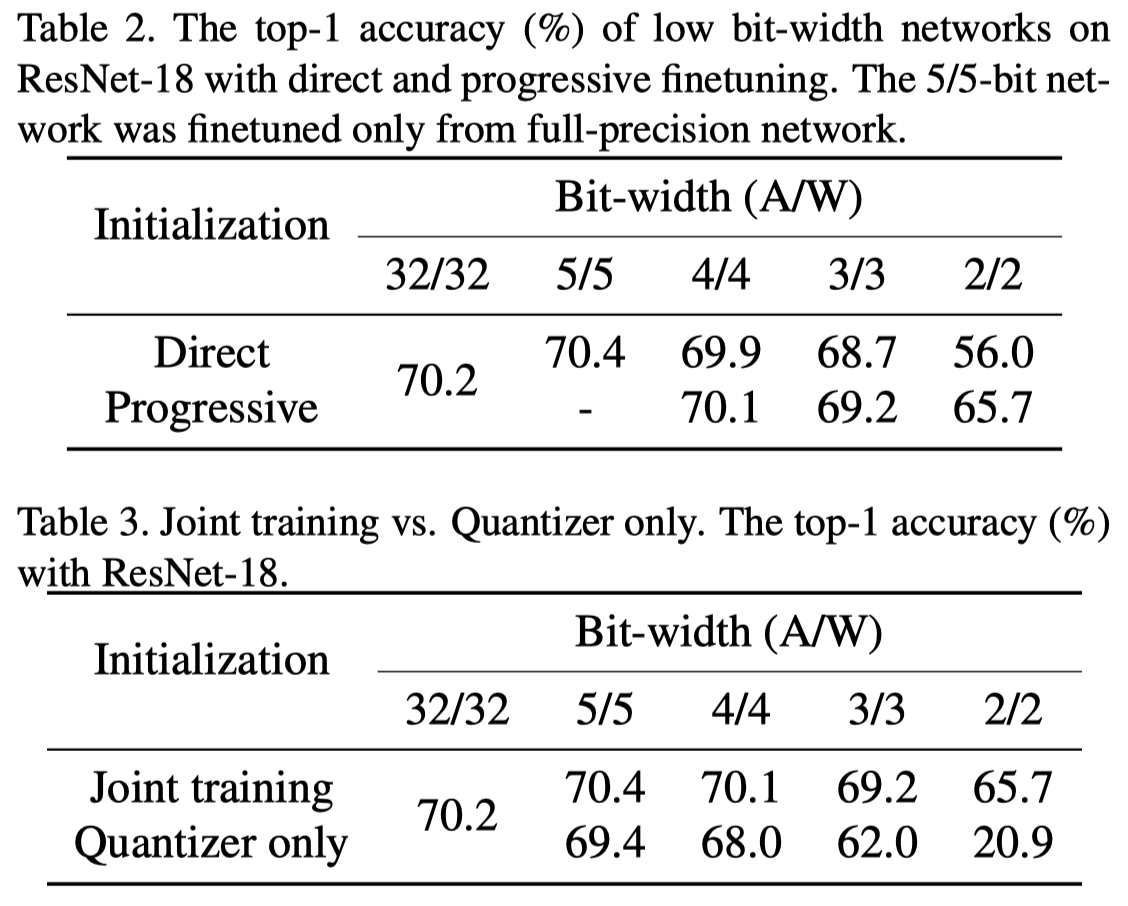

../_images/qil_results2.png
